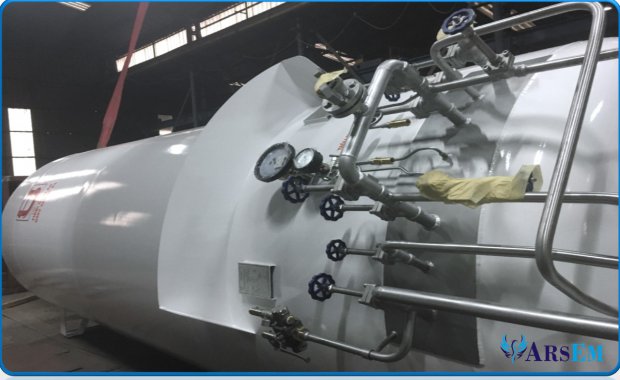

Two 10 m³ Liquefied Oxygen (LOX) tanks, each with its evaporator, were delivered at our factory to our customer for shipment to Georgia.
Pressure-Vessel Specification
Cylindrical Vertical LOX Tank — 10 m³ × 2
Design CodeEN 13458-2
Review AuthorityDEKRA — Germany
Contained GasLiquefied Oxygen (LOX)
Capacity / Volume10 m³ × 2
Design Temperature−196 °C / +50 °C
Operating Temperature−196 °C (liquid)
Operating Pressure (MAWP)15 bar
Test Pressure24 bar
Radiographic Testing100% on L and T welds · 100% on C welds
Alternative Design Codes
Material Grades
Shell / Heads
P 355 NH — EN 10028-3P 355 GH — EN 10028-2S 355 JR — EN 100251.4301 / 1.4307 — EN 10028-7Other Materials
Flanges: PN40 / 304LPipes: 304L (seamless)Inner plates: 304L / 1.4307Outer shell: S355 J2+NTanks are designed per EN 13458; calculations are reviewed by a third-party notified body, and all manufacturing stages — material qualities, NDT, and sealing tests — are documented to standard.
